تفاصيل المنتج:
شروط الدفع والشحن:
|
| طلب: | بطارية الليثيوم رافعة شوكية | نموذج: | إيش 80 فولت 65 أمبير |
|---|---|---|---|
| البعد الشامل: | 497*242.7*411 | ماكس الناتج الحالي (أ): | 65 |
| طاقة الإخراج (W): | 6000 |
Product Description

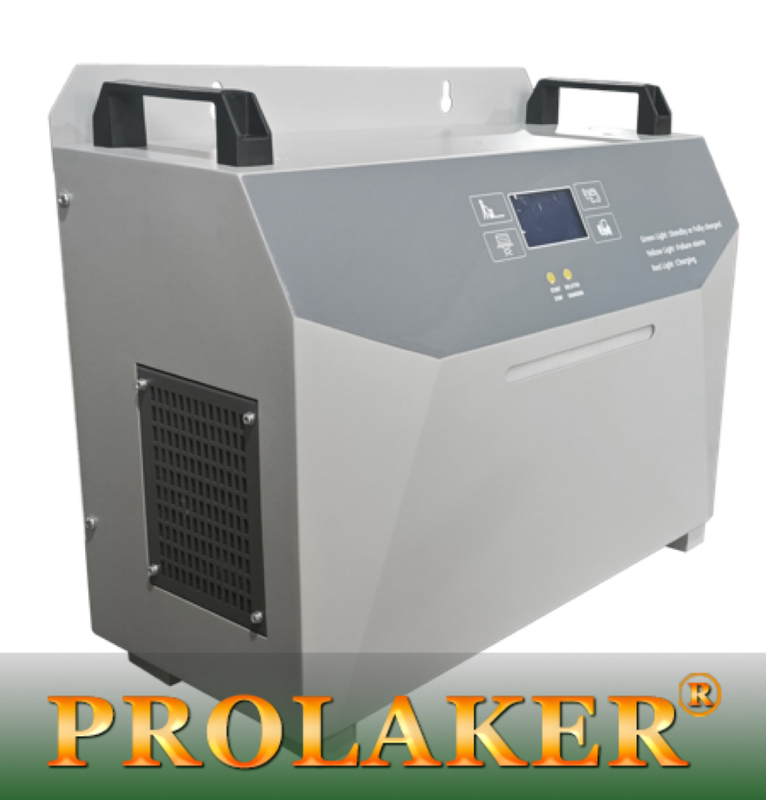

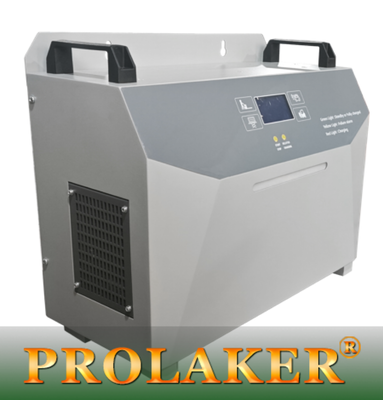

The ESCH forklift battery charger typically refers to an industrial charger used to replenish the energy in forklift batteries. These chargers are often designed for heavy-duty environments, aiming to ensure optimal performance, efficiency, and longevity of forklift batteries.
Product Catalog
| Model | ESCH 80V 65A | ESCH 80V 130A | ||
| Overall dimension | 497*242.7*411mm | |||
| Maximum output current(A) | 65 | 130 | ||
| Output power(W) | 6000 | 13000 | ||
| Input Power Supply | 380V土15% Three phases Four-wire | 380V土15% Three phases Four-wire | ||
| Maximum Output Voltage(VDC) | 100 | 100 | ||
| Compatible Battery Specification | 80V 400-600Ah lithium battery | |||
| Maximum Efficiency | ≥94% | ≥94% | ||
| Output Voltage Regulation Accuracy | ±0.5% | ±0.5% | ||
| Output Current Regulation Accuracy | ±1% | ±1% | ||
| Operating Temperature | -40°C-50℃ | -40°C-50℃ | ||
| Vibration Resistance Grade | SAEJ1378 | |||
| Cooling Method | Air Cooling | Air Cooling | ||
| Over Temperature Protection | 70℃ | 70℃ | ||
| Input Overvoltage Protection (VAC) | ＞530±10V | ＞530±10V | ||
| Input Undervoltage Protection (VAC) | ＜250±10V | ＜250±10V | ||
| Output Overvoltage Protection (VDC) | 105±5 | 105±5 | ||
| Output Overcurrent Protection (A) | >110% of Max Charging Current | |||
| Output Short Circuit Protection | When output short-circuited, the charger shuts down automatically; it will self-recover after fault removal. | |||
| Battery Reverse Polarity Protection | None | |||
Key Features
Product Display
About us
LAKER AUTO PARTS CO., LIMITED is ONE-STOP-SHOP offering parts and accessories for forklifts trucks, low-speed electric vehicles, and auxiliary material handling equipment with a guaranteed high-performance product at the most competitive price.
Our core products are as follows,
Lead acid Batteries for Electric forklift trucks and Electric vehicles,
Intelligent automatic battery chargers including industrial frequency and high frequency,
Regular black and non-marking solid tires for forklifts used at small working fields and warehouses,
Hydraulic solid tire press machine for mounting and dismounting the solid tires,
Mobile loading ramp and fixed dock leveler for loading the container and goods,
Low-speed Electric vehicle with loading platform 1Ton to 3Ton for warehouse/airport/port dock material delivery.
and various of battery accessories for application of maintenance and replacement. (Such as battery plates, gauntlets, connectors, battery watering systems, battery safety valves, battery vent plugs, battery cables and etc.)
At LAKER, we are dedicated to providing comprehensive, quality service from the initial quotation to final product delivery.
Our commitment to service, knowledge, and product availability has made us a One-Stop-Shop for our customers and their business needs.
All the Forklift relevant products are selected from top-class manufacturers under their own brand MYING and LAKER, supported by skilled technicians on standby for any technical query online or solution after-market.
LAKER sincerely hopes to be your best choice for the power solution and maintenance of the Forklift!
We will devote ourselves to enriching our product catalogs with more environment-friendly maintenance products for material handling equipment in the near future.
Given chance and full space, we would show you all of our advantages and let us grow up together. We are sure we can establish a long-term and friendly business relationship with your esteemed company.
